内置sql筛选的实时报警示例

Doraemon

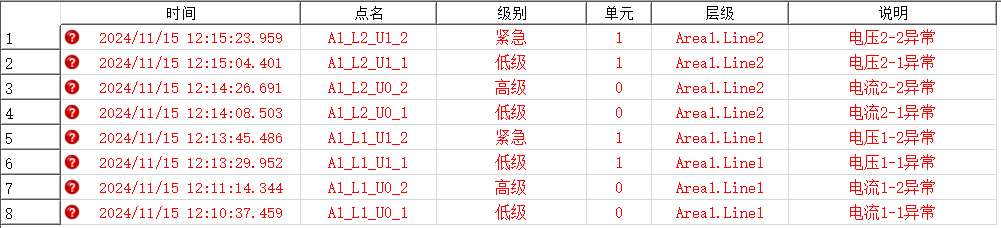

实时报警列表：

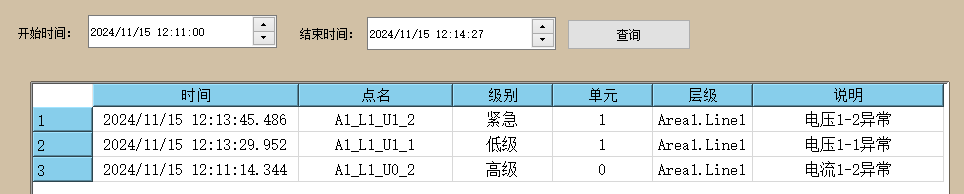

①查询指定时间范围内的实时报警

1. //条件：时间

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where DATETIME>="+ToString(t1.Time_t)+" and DATETIME<="+ToString(t2.Time_t)+" and REALALMCOUNT=100",tab);//时间范围

6. Table1.Set(tab);

7. sql.Close();

复制代码

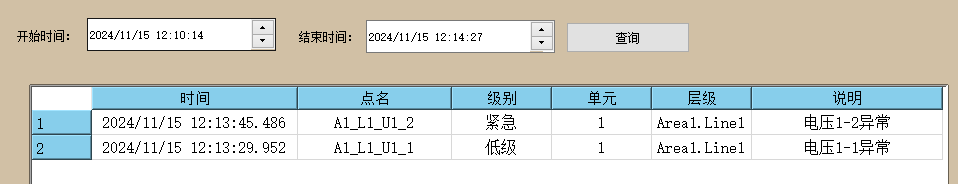

②查询指定时间范围内指定单元的实时报警

1. //条件：时间+单元

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where  DATETIME>="+ToString(t1.Time_t)+" and DATETIME<="+ToString(t2.Time_t)+" and UNIT=1 and REALALMCOUNT=100",tab);//时间范围+单元1的报警

6. Table1.Set(tab);

7. sql.Close();

复制代码

③查询指定时间范围内指定节点的实时报警

1. //条件：时间+层级

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where DATETIME>="+ToString(t1.Time_t)+" and DATETIME<="+ToString(t2.Time_t)+" and ALMGROUP='Area1.Line1' and REALALMCOUNT=100",tab);//时间范围+层级'Area1.Line1

6. Table1.Set(tab);

7. sql.Close();

复制代码

④查询指定节点指定单元的实时报警

1. //条件：单元+层级

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where Unit=1 and ALMGROUP='Area1.Line1' and REALALMCOUNT=100",tab);//单元1+层级Area1.Line1

6. Table1.Set(tab);

7. sql.Close();

复制代码

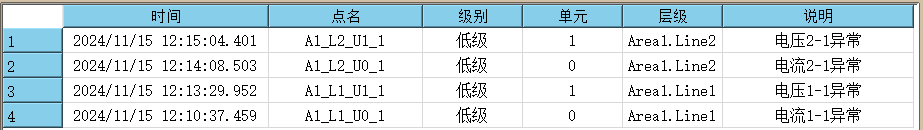

⑤查询低级报警

1. //条件：级别

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where LEVEL=0 and REALALMCOUNT=100",tab);//低级报警

6. Table1.Set(tab);

7. sql.Close();

复制代码

⑥查询指定节点下紧级报警

1. //条件：级别+层级

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where LEVEL=2 and ALMGROUP='Area1.Line1' and REALALMCOUNT=100",tab);//紧急报警+层级Area1.Line1

6. Table1.Set(tab);

7. sql.Close();

复制代码

⑦点名查询（精准或模糊查询）

1. //条件：点名

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where Name Like '%1_2%' and REALALMCOUNT=100",tab);//点名内含有1_2的测点报警

6. Table1.Set(tab);

7. sql.Close();

复制代码

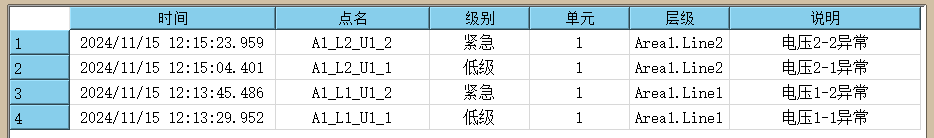

⑧说明查询(模糊或精确)

1. //条件：说明

2. ObSql sql;

3. ObTable tab;

4. sql.Connect("Local");

5. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where Desc Like '%电压%'  and REALALMCOUNT=100",tab);//说明含有电压

6. Table1.Set(tab);

7. sql.Close();

复制代码

内置SQL查询注意事项：

1.查询实时报警，不可缺少REALALMCOUNT条件. 此为必要条件，不可缺少！！

1. ObSql sql;

2. ObTable tab;

3. sql.Connect("Local");

4. sql.Query("SELECT  DATETIME AS 时间,NAME AS 点名,LEVEL AS 级别,UNIT AS 单元,ALMGROUP AS 层级,DESC AS 说明 from alarmdata where DATETIME>="+ToString(t1.Time_t)+" and DATETIME<="+ToString(t2.Time_t),tab);//<font color="#ff0000">缺少</font><span style="color: rgb(255, 0, 0);">REALALMCOUNT，会导致查询结果为空</span>

5. Table1.Set(tab);

6. sql.Close();

复制代码

2、查询语句必须包含SELECT、FROM、WHERE这三个关键字

3、查询必须要有条件表达式

4、如果有时间条件，必须有时间范围，即开始和结束时间。

5、查询条件，字符串区分大小写
